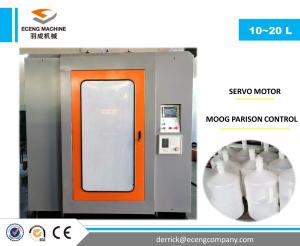

20 Liter Extrusion Molding Machine , 5 Gallon Hdpe Drum Manufacturing Machines

Product Categories
Zhangjiagang Eceng Machinery Co.,Ltd
Contact Now

20 Liter Extrusion Molding Machine , 5 Gallon Hdpe Drum Manufacturing Machines

  • 1
  • 2

Brand Name : Eceng

Model Number : YC-20L-D

Certification : CE&ISO&SGS

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets per month

Delivery Time : 30 working days

Packaging Details : Film pack

Air consumption : 0.4M3/Min

Dimension : 3.43*2.3*2.65m

weight : 5.5T

warranty : 1 year

station : double

power : 7.5KW

Contact Now

One step good price auto 5 gallon 20 liter pc hdpe abs plastic water bottle automatic extrusion blow molding

It is suitable for producing plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar,drum ,Tool kit , plastic model etc.

Technical Parameters

One step good price auto 5 gallon 20 liter pc hdpe abs plastic water bottle automatic extrusion blow molding /moulding machine
Technical specification
Model
YC-5L
Station
double
Max. Product Volume
(L)
5L
Dry cycle
(pc/h)
700*2
Screw Diameter
(mm)
70
Screw L/D ratio
(L/D)
25
Screw drive power
(KW)
22
Max. Output of HDPE
(Kg/hr)
70
Oil pump drive power
(KW)
7.5
Clamping force
(KN)
60
Platen distance
(mm)
148~508
Max. Size of Mold(W*H)
(mm)
370*390
Die heat power
(KW)
2.5
Blowing pressure
(Mpa)
0.6
Air volume
(M3/MIN)
0.4
Cooling water pressure
(Mpa)
0.2~0.3
Water consumption
(L/MIN)
60
Size of machine ( L*W*H)
(m)
3.43*2.3*2.65
Weight of machine
(TON)
5.5
Details images
20 Liter Extrusion Molding Machine , 5 Gallon Hdpe Drum Manufacturing Machines
One step good price auto 5 gallon 20 liter pc hdpe abs plastic water bottle automatic extrusion blow molding /moulding machine
Extruson blow molding machine suppliers of main parts:
a) Hydraulic Parts
Name
Supplier
a) Hydraulic Parts
Oil Pump
PARKER or SUNNY, America
Valve
YUKEN or SUNNY
Hose, Joint
PARKER SIR
Sealer
Top DZ Europe
b) Electrical Parts
Microcomputer Control System
MITSUBISHI PLC, Japan
Touch Screen
HITECH color screen, Taiwan
Temperature Controller
MITSUBISHI, Japan
Conductor
SCHNEIDER
Air Switch
SCHNEIDER
Motor
SIMENS BEIDE Asynchronous Motor
Power Resource
MEAN WELL, Taiwan
Inverter
MITSUBISHI
c) Pneumatic Parts
Solenoid Valve
FESTO, Germany
Cylinder
FESTO, Germany

20 Liter Extrusion Molding Machine , 5 Gallon Hdpe Drum Manufacturing Machines
