Big Neck Jar PET Bottle Blowing Machine , Blow Moulding Machine 1 Year Warranty
J series blow moulding machine is a specialized equipment designed for large-diameter PET bottles,with features of high automation,wide versatility,and easy operation.It is especially suitable for the production and processing of large-diameter 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system, which can be more stable.
Features:
1.Strong versatility,suitable for 50-180mm diameter,high automatic degree,suitable for preform loading of jar bottle,automatically unloading the bottle.
2.One worker can control two to three machines,high output,can be equipped with all-electric stretching and mould clamping.
3.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.
4.Safe, reliable and unique valve position design makes blowing process easier to control
5.Safety locking device in every mechanical action to protect operator’s safety.
6.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.
7.With both automatic and manual operation method.
8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.
9.Easy to install and start, low scrap rate.
| Item | J2 |
| Bottle type specification | Cavity | 2 |
| Theory output | 1200-1300 |
| Max.volume | 5L |
| Bottle mouth maximum overall DIdiameter | 150mm |
| Bottle biggest diameter | 180mm |
| Bottle maximum height | 400mm |
| Power specifications | Light tube quantity | 32pcs |
| Light tube power | 1.5KW |
| Maximum heating power | 48KW |
| All electric machine installation | 51KW |
| Actual consumption | 35.7KW |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600L/min |
| Blow bottle pressure | 25-35kg/cm2 |
| Higher -pressure gas consumption | 3400Ltr/min |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ |
| Consumption | 6000kcal/hr |
| Forzen water flow | 50L/min |
| Machine specification | Size of the machine | 4.7×1.6×1.9 |
| Weight of the machine | 3ton |
Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

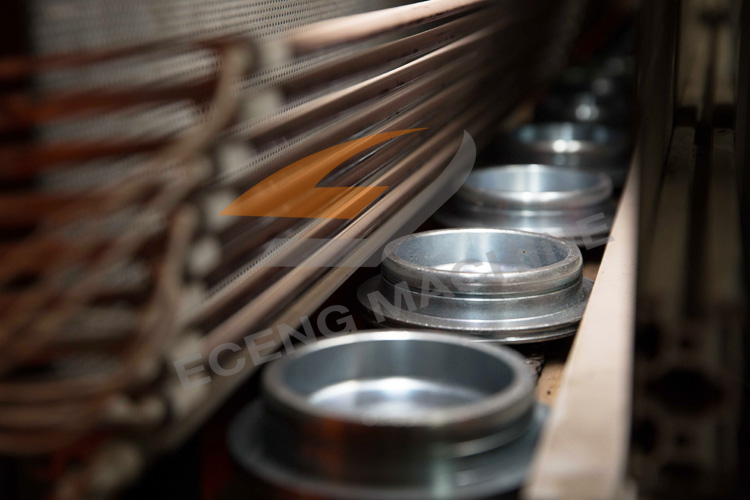

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
